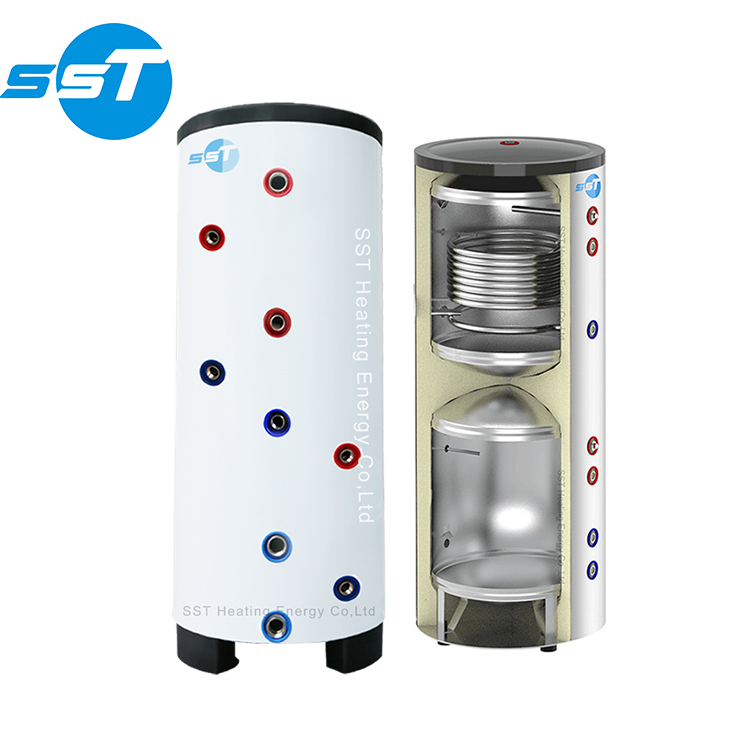

SST Wholesale Good Quality Stainless-steel SUS304 Home Use 100L/150L/200L Heat Pump Buffer Tank
| Capacity | L | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Inner tank diameter | mm | Φ370 | Φ470 | Φ500 | Φ550 | Φ600 | Φ650 | Φ700 | Φ800 |
| Out shell diameter | mm | Φ470 | Φ560 | Φ600 | Φ650 | Φ700 | Φ760 | Φ800 | Φ900 |
| Inner tank material | mm | SUS304 / SUS316L / Duplex2205 / Duplex2304 | |||||||
| Out shell material | mm | galvanized steel with painting / stainless stell / PU | |||||||
| Out shell color | white / silver-grey / blue /red / golden / stainless stell | ||||||||
| Max.working pressure | bar | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Max.testing pressure | bar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Max.running temperature | ℃ | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Heating loss | W/K | 0.65 | 0.72 | 0.89 | 1.02 | 1.15 | 1.26 | —— | —— |
| Standing loss | W | 30 | 33 | 40 | 46 | 52 | 57 | —— | —— |
| ERP Class | A | A | A | A | A | A | A | A | |
| Electrical heater | kw | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 |
| Mg.Anode | mm | Φ22*300 | |||||||
| Water connection | G / BSP / NPT 3/4" | G / BSP / NPT 1" | |||||||
| Packing size | mm |
L:540 W;540 H:117 |
L:630 W:630 H:1440 |
L:670 W:670 H:163 |
L:720 W:720 H:1920 |
L:780 W:780 H:1930 |
L:850 W:850 H:1940 |
Φ900*2200 | Φ980*2420 |
Q1. Material?
For inner tank we have SUS304,SUS316L and Duplex 2205. The most popular is Duplex 2205. For the outer shell is galvanize with painting and stainless steel both are available.Also for the big tank we can do the PU coat.
Q2.Volume?
For now we can do from 20L to 1000L.
Q3. Lead time?
For the LCL order is 15 days after received the payment . for the container order is 25 days after received the advance payment.
If you are purchasing a stainless-steel heat pump buffer tank for your home, hunt no additional compared to the SST Wholesale Good Quality Stainless-steel SUS304 Home Use 100L/150L/200L Heat Pump Buffer Tank.
SST is truly a brand is relied on the market, and this tank isn't really any type of exemption for their dedication towards reliability and quality. Created away from SUS304 steel is stainless this tank is designed towards last and endure damages for years later on. Furthermore, it is environmentally friendly, whilst the use is sustained due to it of sustainable source of power like for example temperature level pumps.
Along with 3-dimension services (100L, 150L, and 200L), typically the one might be chosen through you that very most easily helpful suits your home's demands. This tank's small dimension implies it will not have a good deal up of location in your home, nevertheless it can easily nonetheless keep adequate heated up sprinkle to assist maintain your home running efficiently.
Furthermore, functions efficiency is higher which assists stay up to date with the sprinkle heat and reduce temperature level reduction, assisting you conserve potentially a big choice of dollars in energy costs each year. Additionally, it functions a heat is incorporated as well as it is appropriate for a variety of command bodies for simpleness.
Setup can easily likewise be extremely easy using this specific tank, because it is produced quick and setup is actually simple very little maintenance required. It functions an assurance is 1 year your peace of mind.
If you wish to purchase a dependable and high-performing buffer tank, select SST Wholesale Good Quality Stainless-steel SUS304 Home Use 100L/150L/200L Heat Pump Buffer Tank.
