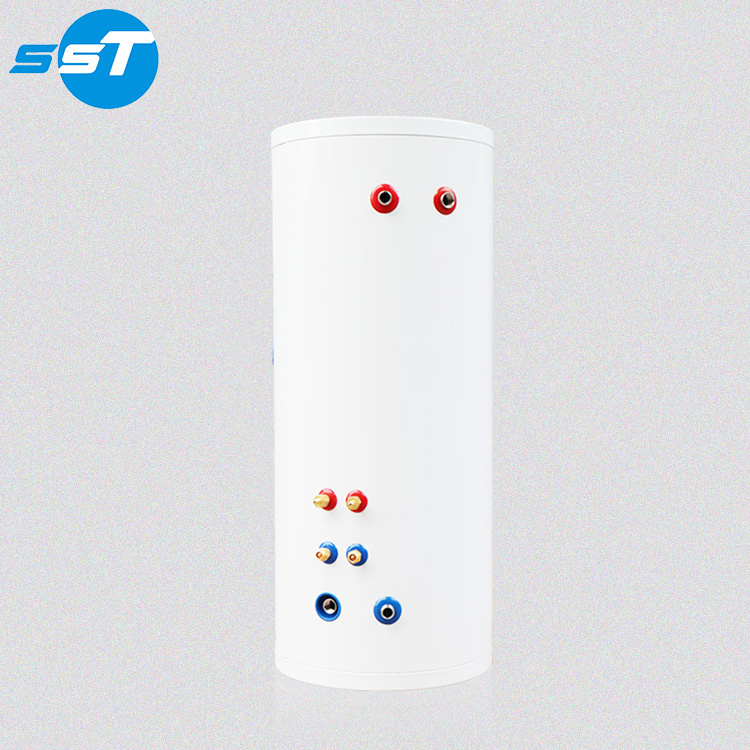

SST air source heat pump hot water cylinder+household water tank solar coil exchanger for heat pump
| Capacity | L | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Inner tank diameter | mm | Φ370 | Φ470 | Φ500 | Φ550 | Φ600 | Φ650 | Φ700 | Φ800 |
| Out shell diameter | mm | Φ470 | Φ560 | Φ600 | Φ650 | Φ700 | Φ760 | Φ800 | Φ900 |
| Inner tank material | mm | SUS304 / SUS316L / Duplex2205 / Duplex2304 | |||||||
| Out shell material | mm | galvanized steel with painting / stainless stell / PU | |||||||
| Out shell color | white / silver-grey / blue /red / golden / stainless stell | ||||||||
| Max.working pressure | bar | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Max.testing pressure | bar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Max.running temperature | ℃ | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Heating loss | W/K | 0.65 | 0.72 | 0.89 | 1.02 | 1.15 | 1.26 | —— | —— |
| Standing loss | W | 30 | 33 | 40 | 46 | 52 | 57 | —— | —— |
| ERP Class | A | A | A | A | A | A | A | A | |
| Electrical heater | kw | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 |
| Mg.Anode | mm | Φ22*300 | |||||||
| Water connection | G / BSP / NPT 3/4" | G / BSP / NPT 1" | |||||||
| Packing size | mm | L:540 W;540 H:117 | L:630 W:630 H:1440 | L:670 W:670 H:163 | L:720 W:720 H:1920 | L:780 W:780 H:1930 | L:850 W:850 H:1940 | Φ900*2200 | Φ980*2420 |
Q1. Material?
For inner tank we have SUS304,SUS316L and Duplex 2205. The most popular is Duplex 2205. For the outer shell is galvanize with painting and stainless steel both are available.Also for the big tank we can do the PU coat.
Q2.Volume?
For now we can do from 20L to 1000L.
Q3. Lead time?
For the LCL order is 15 days after received the payment . for the container order is 25 days after received the advance payment.
The SST air supply heat pump hot water cylinder is an innovative and reliable solutions for
households who're seeking a more energy-efficient and eco-friendly water systems is hot. Made with premium materials and a sturdy design, this cutting-edge item is definitely an excellent long-lasting investment for any family is modern.

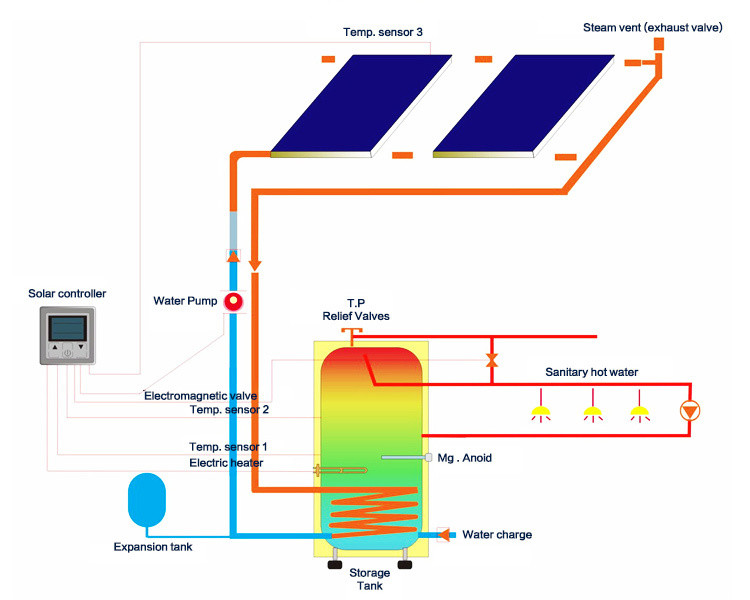

Harnesses the powers associated with the sun and air to heat your water in a sustainable and ways is efficient. Your family water tanks coil is solar works in tandem with the heat pumps to convert the ambient air temperatures into heat energy. The results are a dependable and consistent supply of heated water for your loved ones’ daily needs, with no hefty bills or impacts is environmental typically includes traditional warm water systems.
A trusted brand with a reputation for quality and innovation within the heating and industry is cooling. Effective and efficient addition to any household featuring its fashionable and sleek designs. It comes in a range of sizes for you personally and will be easily installed by a qualified professional.
One regarding the keys benefits of it is the flexibility it offers. The systems could work on its own as a standalone heated water heater, or it can be integrated into your existing heating systems is central. The hot water cylinders itself boasts impressive insulations properties, ensuring minimal heat loss and efficiency is maximum.
An additional benefit is its low maintenance requirements. The units were created to be sturdy, reliable, and user friendly, with automated settings that keep the functional systems operating smoothly. You time and money in the long run because it utilizes normal resources of energy, there is no need for regulars’ refills or fuels replacements, saving.
The SST air source heat pump hot water cylinder is a product is top-notch delivers a practical and effective solutions for households searching to reduced their energy consumption and carbons footprints. This revolutionary item is a worthwhile investment for any family members seeking a more sustainable and eco-friendly heated water systems featuring its sleek design, flexible installation options, and minimal upkeep needs.
